Français
ROLLO 50: 50mm automatic retractable strap - ratchet
Features
Reference
49049 10
Capacité
750 daN
Width
50 mm
Material
Steel hardware and polyester strap
Use
Interior stowage
Poids
1,5 kg
Longueur
3.25 m
Type
Vans and Refrigerated Trucks
Crochets
Push pin fasteners 7H
STF
75 daN
Partie Fixe
0m50
Tensioner
Ratchet
50 mm automatic retractable strap ROLLO50.
Compliant with standard EN 12195-2.
Several references available, see table for specifications.
| Reference | Hook | Length | LC |
|---|---|---|---|

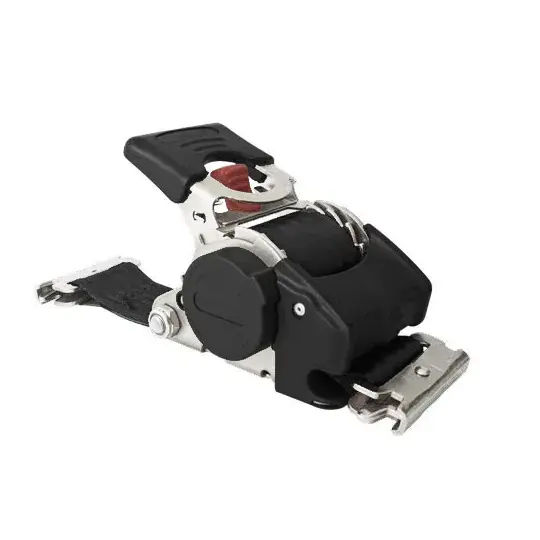

| 49049 10 | 7H push-in hook | 3,25 m | 750 daN |

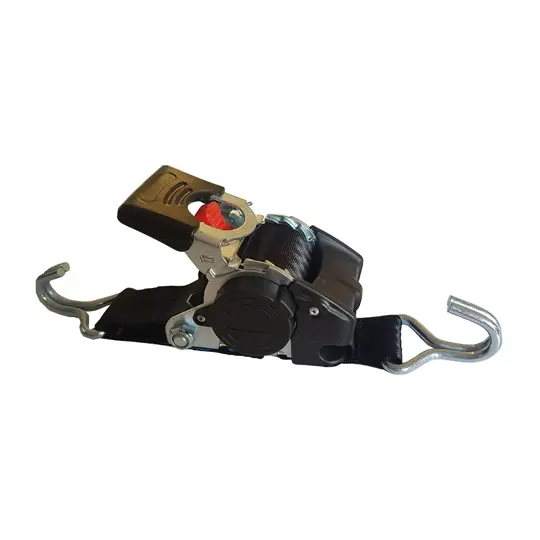

| 49049 11 | Claw hook | 3,25 m | 500 daN |

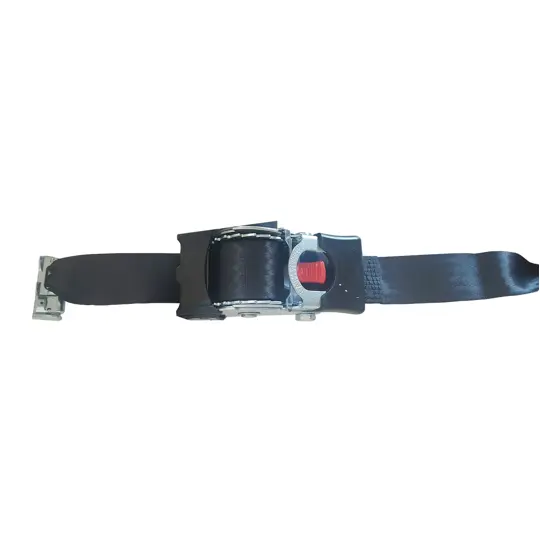

| 49049 14 | 7V double pawns hook | 2,90 m | 750 daN |
The ROLLO50 strap is a ratchet strap with an integrated retractor, very easy to use with facilitated storage.
The installation of the automatic retractor strap ROLLO is simple and quick. Thanks to the red button, with a single press, the strap automatically winds up.
- Ergonomics: one-click automatic winding
- Time-saving: no need to manually wind the strap
Also available in 25 mm width.
Regular maintenance of the strap helps extend its lifespan and ensure long-term effectiveness.
ROLLO 50: 50mm automatic retractable strap - ratchet
Reference
49049 10
Capacité
750 daN
Width
50 mm
Material
Steel hardware and polyester strap
Use
Interior stowage
Poids
1,5 kg
Longueur
3.25 m
Type
Vans and Refrigerated Trucks
Crochets
Push pin fasteners 7H
STF
75 daN
Partie Fixe
0m50
Tensioner
Ratchet
| Reference | Hook | Length | LC |
|---|---|---|---|
| 49049 10 | 7H push-in hook | 3,25 m | 750 daN |
| 49049 11 | Claw hook | 3,25 m | 500 daN |
| 49049 14 | 7V double pawns hook | 2,90 m | 750 daN |
Questions & Answers
Existe-t-il plusieurs grades dans la gamme de chaînes d'arrimage?
Oui notre stock permet de fournir de la chaîne d'arrimage en grade 80, 100 et 120
are the straps customizable?
Thanks to its workshop based in Mions, Forankra can customise straps according to your needs: length, colour, marking and available buckles. Forankra can also make straps to drawings.
Does the color of the strap affect the resistance?
No, the colour has no impact on the capacity of the strap and this is not prescribed in the standard. On the other hand, the label includes all the information needed to identify the strap (STF, CMU, elongation, etc.).
Do the straps need to be inspected?
There is no regulatory strap check, but wear must be checked before use.
What is the LC?
The LC stands for ‘lashing capacity’ or, in accordance with the standard, the LC expresses the strap's capacity for use, including the safety coefficients. It therefore refers to the strap's daily use.
What is the STF ?
STF is the tension force of the ratchet. Its unit of measurement is the daN (deca-newton).
What is the SHF ?
The SHF represents the human force used to tension the ratchet. Its unit of measurement is the daN (deca-newton).
