Profile 500 - AERO lashing rail - semi-circular
Features
Reference
146-180-3000
Material
Aluminum
Dimensions
50 x 11,3 mm
Poids
0,71 kg/m
Longueur
3 m
Longueur
2 m
Type
Utility and leisure vehicles
Installation method
Surface mounted
Semi-circular aircraft tie-down rail.
Several references available, see table for specifications.
| Reference | Length | Centre-to-centre | Weight |
|---|---|---|---|
| 146-180-2000 | 2000 mm | 25.4mm | 1.42 kg |
| 146-180-2000/25 | 25mm | ||
| 146-180-3000 | 3000 mm | 25.4mm | 2.13 kg |
| 146-180-3000/25 | 25mm |
Our range of rails dedicated to LCVs Profile 500 combines modularity, efficiency, and lightness.
Our rails with aerospace-derived impressions allow for a close fixation thanks to the small space between 2 cells (center distance).
Available in different shapes, center distances, and lengths to meet specific layout needs in utility vehicles.
The aero rails can be used as anchoring points for straps, locking holes for bars, or as furniture attachment points, for example.
The profile 146-180 has a rounded shape reducing the risk of rubbing or snagging with the cargo.

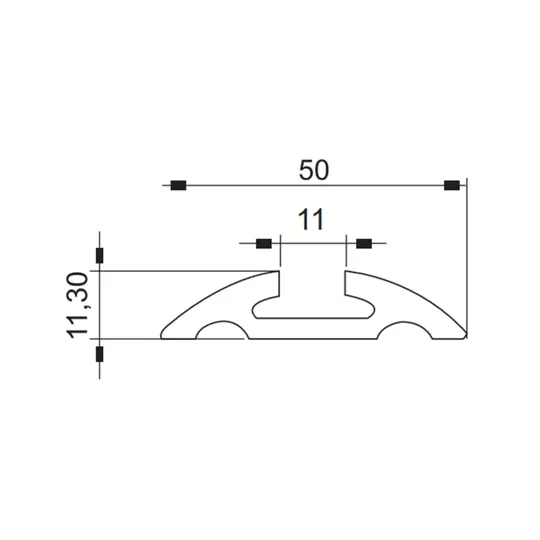

Width 50 mm - thickness: 11.3 mm
Resistance: 500 daN
For a neat finish: use plastic end cap ref: 46006-20
Profile 500 - AERO lashing rail - semi-circular
Reference
146-180-3000
Material
Aluminum
Dimensions
50 x 11,3 mm
Poids
0,71 kg/m
Longueur
3 m
Longueur
2 m
Type
Utility and leisure vehicles
Installation method
Surface mounted
| Reference | Length | Centre-to-centre | Weight |
|---|---|---|---|
| 146-180-2000 | 2000 mm | 25.4mm | 1.42 kg |
| 146-180-2000/25 | 25mm | ||
| 146-180-3000 | 3000 mm | 25.4mm | 2.13 kg |
| 146-180-3000/25 | 25mm |
Questions & Answers
Is it easy to recut the rails?
Forankra can cut rails to length on request or to drawing
Is the lashing rail recyclable?
Yes, the lashing rail can be recycled
Are there rails for commercial vehicles?
The Profile 500 range is ideal for light commercial vehicles because it is easy to recut and lightweight.
