Rideau acoustique RW 35 dB
Acoustic curtain RW 37 dB
Features
Reference
PRT-18
Hauteur maxi
8000 mm 1
Moteur
prise directe 400 volts 1
Couleur
finition galvanisée ou RAL au choix
Acoustique
R w(C;Ctr) 37(-2;-6) d B 1
Use
intérieur/intérieur ou intérieur/extérieur 1
Epaisseur
60 mm 1
Largeur maxi
9000 mm 1

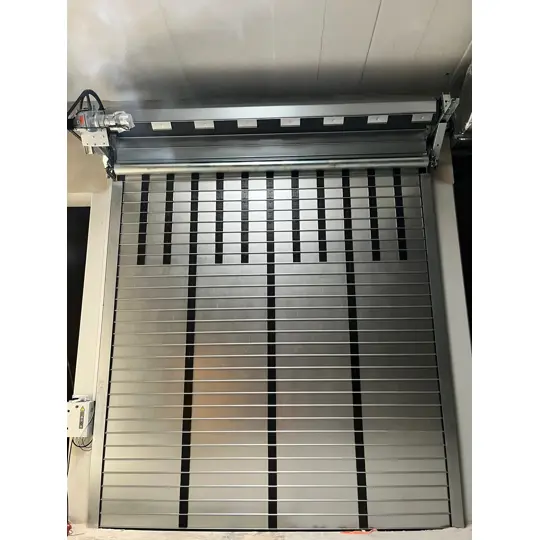

Metallic acoustic curtains made of galvanized steel.

Technical description

The acoustic curtain is an effective solution for reducing noise while providing robust protection.

  • Classification according to standard: EN 13501-2
  • Cycle test: Validated according to standard C3 (> 25,000 cycles)
  • CE marking: Compliant with EN 13241 standards

The acoustic curtain is designed for indoor and outdoor use.

It is suitable for frequent use and can be mounted on the wall or opening. Approved mounting surfaces include aerated concrete, silico-calcareous brick, concrete, masonry, and steel structures.

2 types of motorization:

  • Standard chain motor, 400 V with control box
  • Tubular motor 230 V with control box (up to ± 10 m²)

Safety device: Optical and acoustic signaling

Curtain: Double-walled galvanized steel, 60 mm thick slats

Finish:

  • Interior: galvanized
  • Exterior: choice of RAL colors

Options:

  • Indoor/outdoor use up to wind class 3 (700 Pa)
  • Rolling shutter box: for galvanized steel roller/motor
  • Barrier and hardware set
  • Various switches

Contact us for more information or for a custom configuration tailored to your specific needs.

Acoustic curtain RW 37 dB

Features
Reference
PRT-18
Hauteur maxi
8000 mm 1
Moteur
prise directe 400 volts 1
Couleur
finition galvanisée ou RAL au choix
Acoustique
R w(C;Ctr) 37(-2;-6) d B 1
Use
intérieur/intérieur ou intérieur/extérieur 1
Epaisseur
60 mm 1
Largeur maxi
9000 mm 1

Questions & Answers

What is acoustic attenuation?

Acoustic attenuation is the insulation provided by a door or wall for a set of standardised noises.

What is RW in acoustics?

The weighted sound reduction index (RW d and B) is the acoustic indicator describing a building's insulation against airborne noise.
