Chain sling 2 legs Grade 80
Features
Reference
L2C01
Material
Acier allié HR grade 80
Longueur
Sur - mesure
CMU
1000 kg
Diamètre
6 mm
Grade 80 chain slings - 2 legs

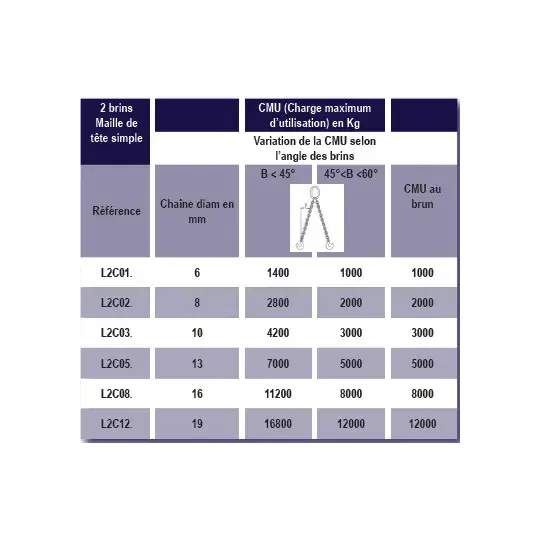

Several references available, see table for specifications.
| Reference | Chain diameter in mm | CMU for 1 strand in kg |
|---|---|---|
| L2C01 | 6 | 1000 |
| L2C02 | 8 | 2000 |
| L2C03 | 10 | 3000 |
| L2C05 | 13 | 5000 |
| L2C08 | 16 | 8000 |
| L2C12 | 19 | 12000 |
The chain slings are made of alloy steel HR, grade 80, compliant with standard EN 818-4.
2-leg model.
Utilization coefficient: 4.
Composition:
- Master link
- HR chain
- Hook to be determined from: eye hooks with safety latch, eye hooks with automatic locking, swivel hooks with safety latch, swivel hooks with automatic locking, clevis hooks with automatic locking, clevis hooks with safety latch
- Connecting elements to be determined from: master link shorteners, eye shorteners, or claw shorteners
- Identification plate
Chain sling 2 legs Grade 80
Reference
L2C01
Material
Acier allié HR grade 80
Longueur
Sur - mesure
CMU
1000 kg
Diamètre
6 mm
| Reference | Chain diameter in mm | CMU for 1 strand in kg |
|---|---|---|
| L2C01 | 6 | 1000 |
| L2C02 | 8 | 2000 |
| L2C03 | 10 | 3000 |
| L2C05 | 13 | 5000 |
| L2C08 | 16 | 8000 |
| L2C12 | 19 | 12000 |
Questions & Answers
What grade is there for chain slings?
The grade for chain slings corresponds to the quality of the steel. The higher the number, the greater the strength. Available in 80, 100 or 120
Does diameter affect strength?
Diameter affects strength. The larger the diameter, the greater the maximum working tension (MGT).
Can slings be customised?
Yes, all our slings can be cut to length and fitted with a protective sleeve on request.
