Enclosure kit for Flash-Dock 815
Features
Reference
48916 25-815
Poids
58,8 kg 1
Zone de refuge
500 mm 1
Type
Fixed loading docks
Dimensions garde-corps
500x1100 mm 1
Profondeur hors-tout

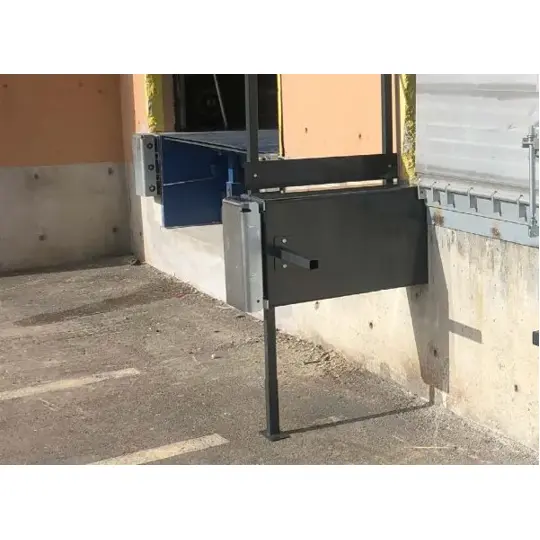

Kit enclosure for Flash-Dock 815. The Flash-Dock enclosure reinforces the security of the dock and building during docking and transshipment maneuvers.
It also protects operators with its refuge zone. The enclosure is installed on an existing dock.
Available in two models (two different sizes) similar to the Flash-dock.
Paint finish: gray 7016
Kit for Flash Dock 815 (reference 48916 20-815X20) including:
- 2 housing covers
- 2 housings
- 2 guardrails
Optional BUTDOCK 100 bumper.
Enclosure kit for Flash-Dock 815
Reference
48916 25-815
Poids
58,8 kg 1
Zone de refuge
500 mm 1
Type
Fixed loading docks
Dimensions garde-corps
500x1100 mm 1
Profondeur hors-tout
Questions & Answers
What is a refuge area?
In accordance with CRAM recommendations, the refuge area prevents operators from being crushed in the event of a fall or intervention in the vehicle parking area between the platform and the semi, by guaranteeing a survival space. The refuge area complies with standard EN 1398
How do I secure a quay?
To secure a loading bay, we recommend all the devices in the dock equipment accessories range (e.g. wheel chock, wheel guide, loading bridge with refuge area, trestles and support legs, etc.).
I don't have a U-iron on my platform nose. How do I install the dock?
You need to fit a U-iron or metal angle (dimensions to be specified on the technical data sheet, depending on the model) to the dock nose so that you can weld the dock.
Is there a solution for handling a loading dock more easily?
Yes, depending on the model, there are articulated docks compensated by gas struts or springs to limit the effort involved in handling.
Do you have steel dock?
Yes, we have a range of articulated steel cranes (type FBSS and FBSV).
Do the docks respect the refuge area?
Yes, all our docks comply with the safe area standard (NF EN 349)
Is there a slope required for loading docks?
Yes, the docks are designed so that the slope in the working position does not exceed 12.5% (standard EN1398)
Can a dock be made to measure?
Yes, we can offer you a solution with non-standard dimensions on request and after a feasibility study.
